REBUILDING FRONT BRAKE CALIPERS

A motorcycle is a compilation of many systems. Each of these systems is important and for me I hold the tires and brakes as equal in importance. The parts shown here are off a 1985 Honda VF00C with 75,000 miles of minimal maintenance. The bike, weathered and dirty, is complete, straight, and runs quite well, so the owner is justified in spending money to repair an older bike.

We put a new tire on the rear, changed and flushed the coolant, rebuilt the front forks, and lastly, rebuilt the front brakes. The first picture is the left caliper and that was the side the seal leaked worse.

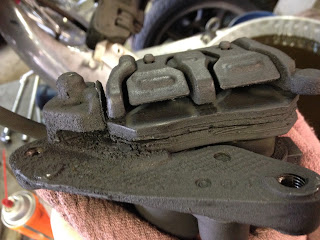

The second picture is the right caliper and is just dirty with cooked on mung.

The third picture shows both calipers disassembled.



A word about skill level here. Hydraulic systems like being clean. Don’t clean rubber parts with anything other than soapy water before reassembly. There are lots of parts to be careful with and those include the pistons. The pistons live a hard life. They have to move in and out under stressful conditions. Heat, water, dust, brake dust, and sometimes, high frequency vibration. Most of the time the degree of difficulty required to remove them from the caliper body is inversely proportional to the overall condition of the caliper. The dirtier and more abused it looks, including rust, the harder it will be to remove them. A C-clamp, good air supply, air gun, penetrating oil, and patience should be used with no discretion. These particular calipers had mostly dirt coating the pistons, so cleaning as much as possible before disassembly eased the process. I use an old tooth brush. Spray the entire completely disassembled caliper with a soapy solution and rinse with hot water.

If the caliper has two pistons use a C-clamp to hold one piston and blow air into the caliper body. If you’re lucky it will pop out. If it sticks, use the clamp to push the piston back in a little after spraying the penetrating oil around the piston. Back and forth…in…out…in…out and eventually both popped out.

The piston pictured had a nick towards the outer edge. I used a fine diamond file to remove the ridge and then a piece of worn 800 grit with oil to polish the piston. If the piston has corrosion pits, then I would suggest replacing the piston. I used the same piece of paper to polish the piston and remove any baked on residue.

The stripped calipers are then taken to a solvent tank and cleaned of oil and grease residue. Then I take the calipers to the glass bead cabinet and clean all the inside of the caliper including the piston bore. After this process the calipers undergo another cleaning with soapy solution and hot water. After washing, it now time for reassembly.

At this point it is extremely important to dry the caliper. Using an air gun and a contact cleaner, blow dry and all passages. Pour new brake fluid into the bores and rotate the caliper to insure the o-rings grooves are coated. Carefully install the o-rings into the bores and apply more new brake fluid to them. Using my finger, I feel the rings and feel if they are even. Confident that they properly installed, I place the brake fluid coated pistons into the bore and using my fingers only, I press the pistons into the bores. This step is a touchy feely moment. If you did everything correctly, the pistons will slide to the bottom of their bore with gentle positioning. DO NOT FORCE THE PISTONS! If they resist then remove, inspect, relube and try again.

I finish installing the brake pads and pin holders to complete the job. After cleaning the wheel and removing all traces of oil residue from the brake rotors the calipers are reinstalled and  the system bled.

REPLACING A RIM

Lacing a rim can be accomplished by anyone, providing they have a degree of patience. Follow a pattern and proceed cautiously, success can be achieved. Rims come in aluminum and steel. They can be any size from 10” to 23”. The rules are the same for all sizes. The smaller the rim, the harder the job. The shorter the spokes, the harder the job.

First lay out all the parts and count them. 36 spoke rims are the most common. The one pictured below has 60. All rims use a series of 4 spokes (2 outside and 2 inside). The inside spokes are the first to put in. The inside spokes have to be inserted first. They may be different right and left so pay attention.
The spokes shown are for a 2003 Suzuki 1400 Intruder front wheel. There are four different spokes. The top 2 spokes with the 90 degree heads are for the rotor side of the hub. The top one is an outside and the second one is the inside. The bottom 2 spokes are slightly different from each other in length. The shorter of the two is the inside.

Look at the rim. The rim holes are grouped in fours. I have shown them with the nipples slightly screwed on. Put all the insides in before the outsides.

In the above picture I have put both in and out spokes in so I can locate the other side spokes. Because I had no reference point to work from I had to do this to locate the proper position for the rotor side. There are 60 holes in the rim and 30 face one direction and 30 face the other. Once you have one side in then you can locate the other side. This causes a double step because you can’t put the inside spokes through. This is shown in the picture below.

Now you have to remove the nipples from all the outside spokes so you can thread the inside rotor side spokes into the holes in the rim.
The inside rotor side spokes are in place. Now you can insert the outside spokes. Below is what it should look like.

At this point no spokes have been tightened. The nipples have been screwed on several turns just to place all the nipples in their position. Next mark the rim, with tape, in three places 120 degrees apart. These three points will be used to align the rims radial (up & down) runout. Radial runout is done first before the lateral (side to side).

Place the wheel in a truing stand. If you don’t have a stand and can’t borrow one, then you have to be creative. You can use the axle with hose clamps to keep the hub from sliding back and forth. At each of the three points only tighten the left inside and right inside nipples. Before cranking down on them, run each nipple onto the spoke the same distance. Snug is the word. Rotate the rim and using a fixed reference point, tighten the nipples equally, a little at a time until the rim spins true on its axis. It also should be mentioned at this point to use spoke wrenches. Finding a wrench to fit the nipples is a crap shoot. Avoid using an adjustable wrench as this usually results in boogered nipples.
Continue tightening the nipples a little at a time until the side to side (lateral) runout is true. If you tighten the spokes on the right it will pull the rim to the right and vice versa. Do not tighten any spoke a lot more than any other nipple. Go slow and do a little at a time. After the rim spins true, use the spoke wrench and tap each spoke in the middle. The spoke should ring a high note. If it sounds flat and doesn’t “ping” then that spoke is loose. Use your ears and listen. It is like tuning a string instrument. The goal is have each spoke ring the same high note. They make torque wrenches to tighten spokes. I have been lacing rims for almost 50 years and have never had any issues without using one
